JLP Trafford Centre – AHU & Extract fan

  • Client

    Oaksmere Design Ltd
  • Location

    Trafford Centre, Manchester
  • Sector

  • Requirements

    Repairs and Servicing of a roof-top AHU and extract fan
  • Objective

    Prevent water ingress and restore performance of AHU and fan uint

JLP – Trafford Centre
Asked to attend site and effect repairs to an existing air handling unit along with an extract fan, we were happy to help.

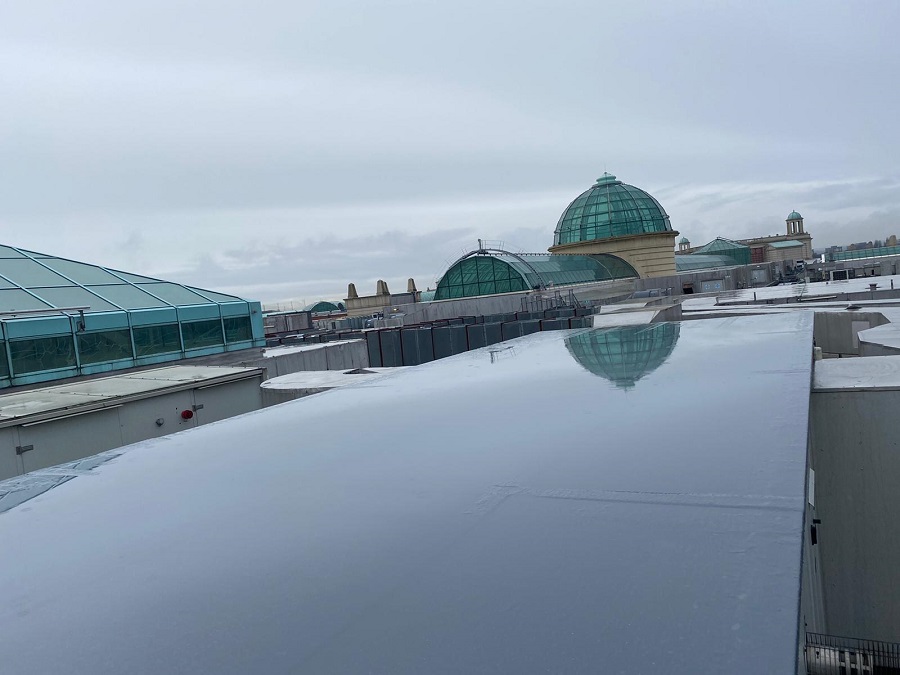

Air Handling Unit – Roof

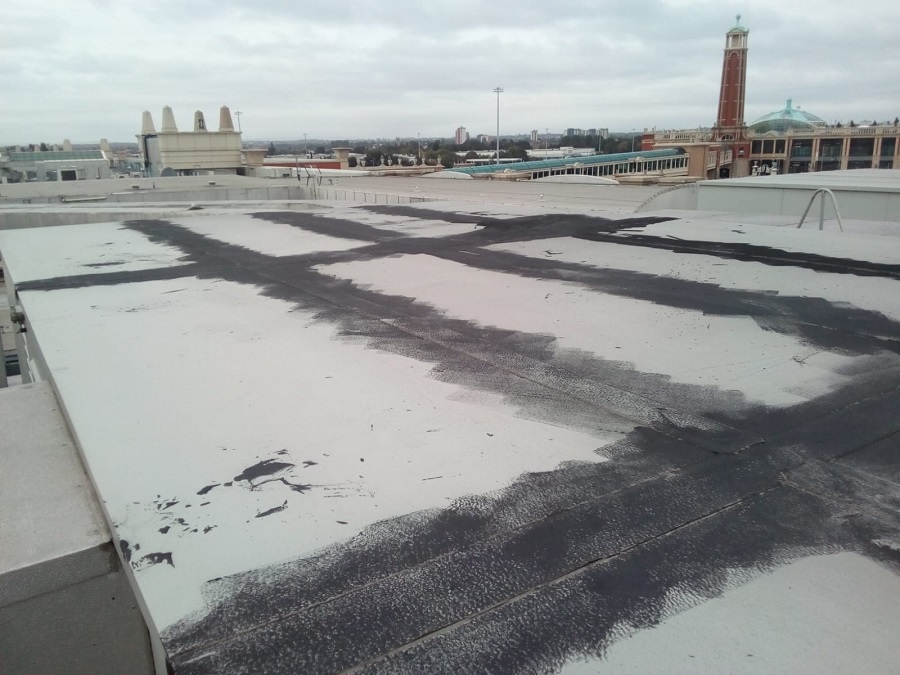

Gaps in the panels and failing seals were were allowing water to penetrate into the AHU. The surface was cleaned and prepared, then a polymer coating applied to ensure water-tight integrity of the roof.

Air Handling Unit – Internal
The inside of the AHU was dried out and new filters fitted along with drive belts for the fan unit.

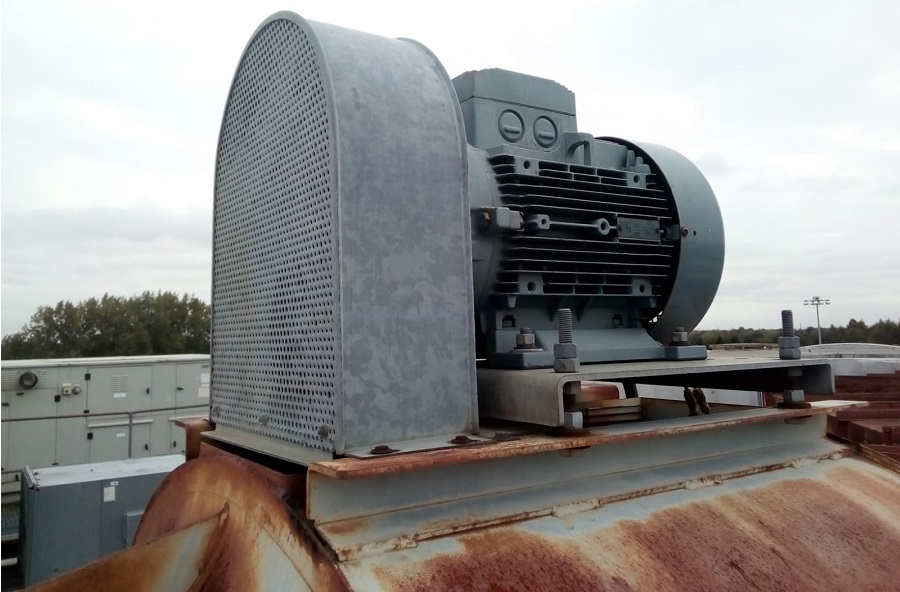

Extract fan
Situated on the roof-top and exposed to the elements, the original coating on the shell had failed and corrosion was getting a grip.

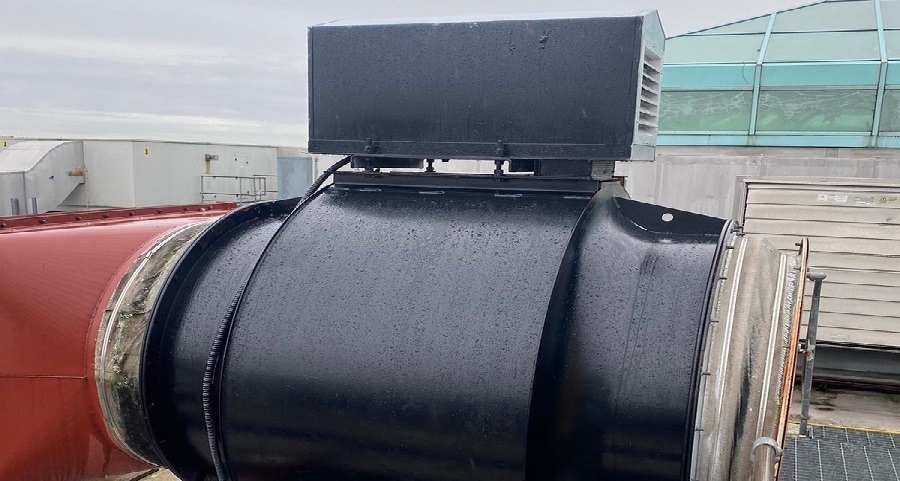

The fan unit was cleared of rust and a weather resistant coating applied. As a precautionary measure to protect the drive motor, a housing was made to shield it from the elements.


No job too big or small they say, and though this was a relatively small job for us, our maintenance team completed the works to a high standard.

  • AHU roof sealed and water-tight preventing future water ingress; extending the life of the unit
  • Performance and reliability improved with the fitting of new filters and belts
  • Rust cleared from extract fan and weather resistant coating applied; extending the life of the unit
